Gogetair G-750 |
CHF 340'000 |
Übersicht
| Übersicht | | Typ: | Single-Prop | | Hersteller: | Gogetair | | Modell: | G-750 | | Baujahr: | 2024 | | RegistrierungsNr.: | S5-MMW | | Standort: | Schweiz, LSZO | | Gesamtzeit (TTAF): | 135 h | | Preis: | CHF 340'000 | | EU-versteuert: | nein | | Alle Details |
| Anbieter |
777 Aircraft Sales
Appel Systems Online
Steubstraße 6
D-86551 Aichach
Deutschland
Tel.: 004915678878339 |
| Kontakt zum Anbieter |
|
|
|
Details
| Übersicht | | Typ: | Single-Prop | | Hersteller: | Gogetair | | Modell: | G-750 | | Baujahr: | 2024 | | RegistrierungsNr.: | S5-MMW | | Standort: | Schweiz, LSZO | | Gesamtzeit (TTAF): | 135 h | | Preis: | CHF 340'000 | | EU-versteuert: | nein |
| Motor(en) | | Anzahl Motoren: | 1 | | Hersteller/Modell: | Bombardier-Rotax GmbH | | Leistung: | 133 PS | | Prop Hersteller/Modell: | MTV-34-1-A/175-200 |
| Beschreibung/Details Motoren | TTAF: 134.8
Engine
Type: ROTAX 915 iS 3
Number of Engines: 1
Manufacturer: Bombardier-Rotax GmbH
Takeoff Power: 140 HP (104 kW) – max 5 min
Max Continuous Power: 133 HP (99 kW) @ 5,500 RPM
Propeller
Manufacturer: MT-Propeller Entwicklung GmbH
Model: MTV-34-1-A/175-200
Number of Blades: 3
Pitch: Hydraulic, in-flight adjustable |

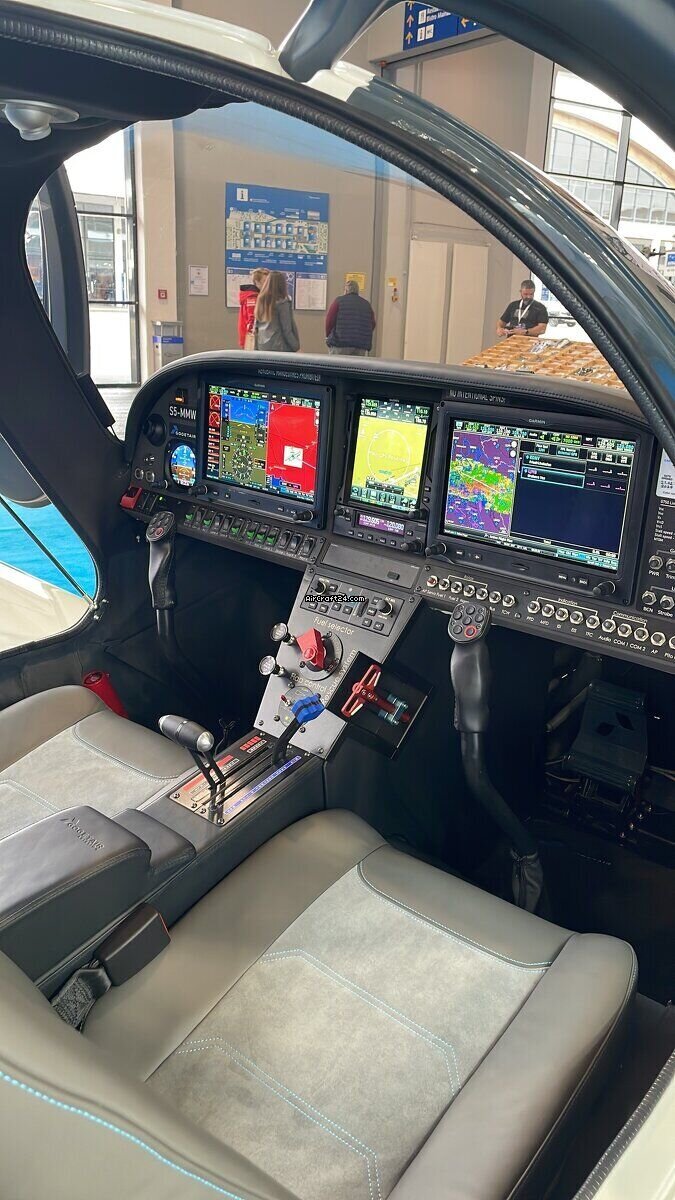

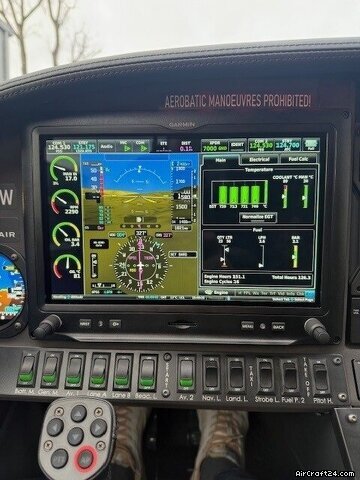

| Avionik | Primary Flight Display (PFD1 Main): Garmin G3X – 010-01057-00, S/N: 350012588
GDU 460/465 Install Kit: Garmin G3X – 010-12150-00
PFD1 Backup Battery: IBBS 12V-3Ah – 202210825
PFD2 Backup: Garmin G3X – 010-01057-00, S/N: 350012592
Central GPS/COM/NAV: Garmin GTN 750Xi – 010-02002-01, S/N: 5FR007271
Autopilot: Garmin GMC 507 – 010-01946-00, S/N: 5H1100565
AP Servo Pitch / Roll: Garmin GSA 28 – 010-01068-20
Radio / COM: Garmin GTR 225A – 010-02486-50, S/N: 44V002979
Audio Panel: Garmin GMA 245R – 010-01471-01
Transponder: Garmin GTX 45R – 010-01757-01, S/N: 4YC040903
Traffic System (ADS-B / FLARM): LXNAV Power Mouse – S/N: 1553
ELT: Artex ELT 345 – A3-06-2880, S/N: 398419-032
Pitot Tube: Garmin GAP 26, 12V Heated – 010-01074-20, S/N: 34F700680
Airborne Weather Devices: Golze Engineering ADL190 & ADLRS232
Engine Indication System: Garmin GEA 24 – 010-01042-00, S/N: 2J2022487
GPS Antennas: GA35 & GA56 Low Profile – S/N: 211905 / 59442914
VHF / COM & NAV Antennas: Rami CI-121, AV-10, AV-525, AV-22, AV-200
Headset Install Connector Kit: Bose LEMO – 323172-0010
Marker Beacon / Antenna Coupler: Rami AV-64 / AV-547 |
| Ausstattung | Fuel & Oil
Fuel Tanks: 2 (wing leading edge)
Total Capacity: 144 L (38 US gal)
Usable Fuel: 136 L (36 US gal)
Oil Tank Capacity: 3.5 L (0.92 US gal)
Dimensions
Wingspan: 9.65 m (31 ft 8 in)
Wing Area: 11.9 m² (128 ft²)
Aspect Ratio: 7.8
Length: 6.98 m (22 ft 11 in)
Height: 2.21 m (7 ft 3 in)
Mean Aerodynamic Chord (MAC): 1.21 m
Weights & Loading
Max Takeoff Weight: 750 kg (1,653 lbs)
Max Front Seat Load (each): 100 kg (220 lbs)
Baggage – Cargo Area 1: 50 kg (110 lbs)
Baggage – Cargo Area 2: 25 kg (55 lbs)
Wing Loading: 63.03 kg/m²
Power Loading: 6.52 kg/HP
Cabin & Baggage: Dual side doors with central lock. Cargo area 2 accessible via fuselage door behind pilot (left side). Max baggage 25 kg. |
| Bemerkungen/Sonstiges | Options / Extras
Lighted instrument panel – 11-05224
2x Ceiling lights (EyeBeam RGBW) – AVE-EBBPS-00T / AVE-EBBA31-1605-00984 / A15-12
Beacon light on rudder (AirBurst NG DayLite) – AVE-ABSYR-D01, S/N: 49201-2205-00002
Front & rear facing camera – Bawaqaf RVC
Windshield heating – Gogetair GGA-VH1
Built-in O2D2 2-place oxygen system – MH Oxygen
AH501 Master Caution / Master Warning – Pushaero, S/N: 23PRI00806
Battery connector for charging 12V – TBD
Oil thermostat 915 – RS-Flight Systems, SKU 10-366, S/N: 1.23.07.023
USB Charger GSB 15 – Garmin, S/N: 63M254364 |
Fotos
